Biometric HandPunch Time Clock - Hand Scanner
Biometric Hand Punch - Hand Scanner Time Clock

Amano PIX-3000xN/NT

Time Validation System

  • Pix-3000xN — Serial communication requiring ATC1000 Host or line driver communication with ATVS Software
  • Pix-3000xNT — True TCP/IP Network Time Stamp (predecessor to TS-3000i), requires ATVS Software
  • Maintain time within 4/10th of a second over a 24-hour period once synched
  • Time imprint format includes seconds per OATS NASD/SEC Rule 6953 requirements
  • Both clocks could be integrated into your current Amano solution

Request Quote

Share/Bookmark
Questions? Call (718) 784-4900.

  • Documentation
  • Specifications



Professional Services:
Clock Configuration

Software Setup/Training
Project Implementation
Hardware/Software Support

Certified Repair Center
Loan Units As Needed

  • Dimensions:6.9"H x 5.9"W x 6"D
  • Weight: 5 lbs.
  • Power: 100/120/230 VAC +/- 10% 50/60 Hz
  • Power Consumption: Normal 3W, maximum 6W
  • Temperature: 14°F - 113°F
  • Humidity: 10-90%
  • Time Sync: Time synchronization with atomic time from NIST at least one per day
  • Environment: Indoor use only, dust free, no direct sunlight
  • Imprint Format: Y2K compliance and prints seconds (YYY/MM/DD HH:MM SS)
  • Time Deviation: Less than 4/10th seconds deviation per day

Pix-3000xN Serial/Pix-3000xNT Network Time Stamps

Amano Time Validation System (ATVS) provides traders with an electronic time validation system and time stamping device that meets OATS requirements for clock synchronization, Y2K imprint compliance, clock accuracy, and printing of seconds.

Amano Pix-3000XNT Time Stamp

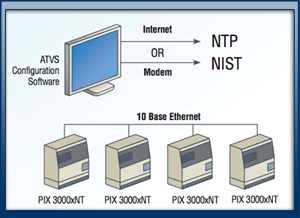

Amano PIX-3000xNT Enterprise Solution

The TCP/IP solution is a “true” Ethernet time stamp solution. It does not simply attach to a network workstation, as with other so called TCP/IP solutions. Each PIX 3000xNT time stamp has an internal NIC and is given an IP address for synchronization over your network. The network ATVS Software is installed on a server on your network.


The PIX 3000xNT time stamps are then deployed anywhere on your network. Each time stamp requires an active available network port set to 10 half communication speed, with network connectivity back to the single software ATVS Configuration Software installation.



»Learn More About This Clocks Replacement: Amano's TS-3000i
Amano Pix-3000XNT Time Stamp

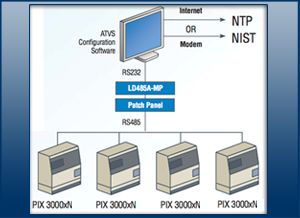

Amano PIX-3000xN Serial Configuration

The serial broadcast solution utilizes the same ATVS Configuration Software installed on your own server as the host, but, uses the PIX 3000xN time stamps. Instead of transmitting the signal to each clock over your network via TCP/IP, the signal would be transmitted via the 9-pin serial port of the single server.


This in turn would attach to provided line drivers and patch panels to the office cabling infrastructure on the trading floor going out to the clocks on the floor. The end-user can utilize standard CAT5 or better grade, straight cable—no special wiring required.


Note: The PIX 3000xN and PIX 3000xNT can co-exist on the same server.

»Check out the latest & best in OATS Time Stamp Systems

Released in 2009, Amano's newest addition to OATS Compliant Time Stamp technology is the TS-3000i web clock. A true 10/100 auto-negotiating network device capable of syncing to NIST automatically with no back-end infrastructure required.



»Learn More About Amano's New TS-3000i

»Learn More About Amano Time Validation System (ATVS Software)
